The WellAir NanoSoft CORE is an automatic self-cleaning needlepoint, brush type ionizer designed for commercial applications.
It produces positive and negative ions that neutralize harmful pollutants and odors in the occupied space. This compact unit automatically removes dust and dirt build-up on the emitters eliminating the need for any maintenance.
Utilizing built in magnets it can be easily mounted at the fan inlet or other preferred locations in a wide range of commercial air handling systems.
FEATURES:
• Inactivates airborne pathogens
• Reduces PM and Odors
• Connects to a range of input voltages
• Magnet mounting for rapid installation
• Factory programmed for auto-cleaning
• Dry contacts for Building Automation Systems
• Units can be combined for single alarm contact
NanoSoft CORE Product Specifications

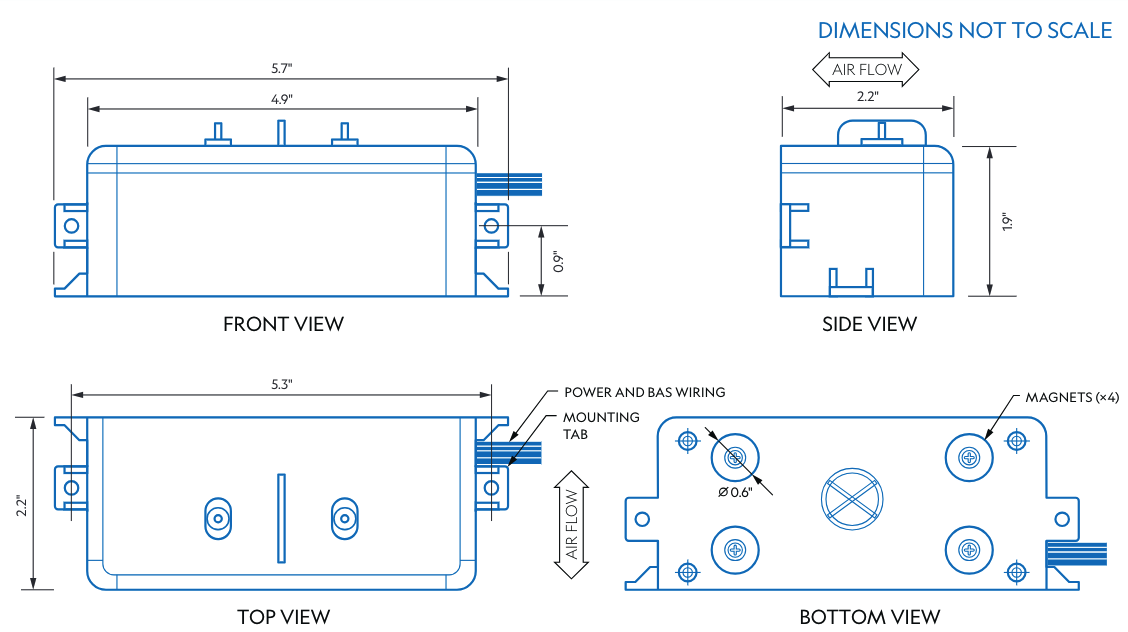

DIMENSIONS:
5.7" x 2.2" x 1.9"
WEIGHT:
0.57 lbs | 0.26 Kg
INPUT VOLTAGES:
24V - 240V AC
POWER CONSUMPTION:
Less than 6 Watts
AIRFLOW CAPACITY:
200 - 6,000 CFM
MODE OF OPERATION:
Brush Type
SELF-CLEANING:
Automated
TYPE:
Soft Bipolar Ionization
