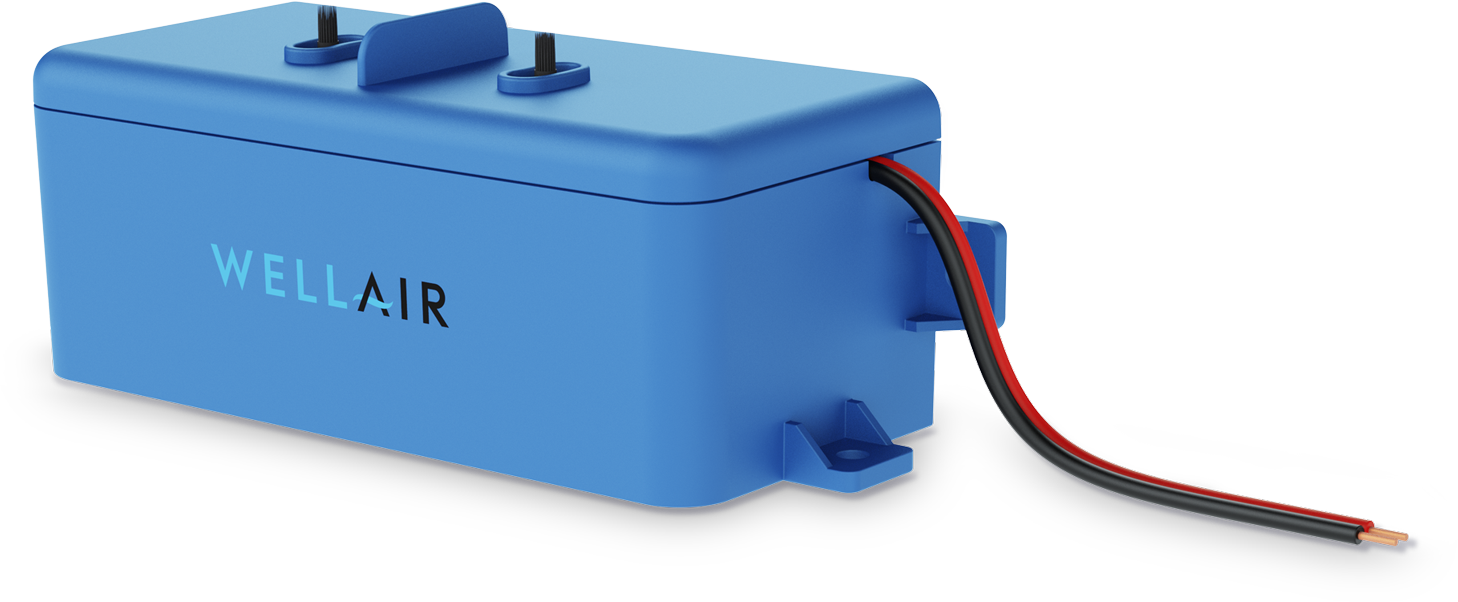

The WellAir NanoCharge BOOST is an automatic self-cleaning needlepoint uni-polar ionizer designed for boosting MERV filter performance in both commercial and residential applications.
The NanoCharge BOOST negatively charges airborne contaminants upstream of the MERV filter thus significantly increasing its effectiveness of trapping them.
This compact unit automatically removes dust and dirt build-up on the emitters eliminating the need for any maintenance. Utilizing built in magnets it can be rapidly installed before the filter.
FEATURES:
• Significantly boosts MERV filtration
• Connects to voltages from 24V AC to 240V AC
• Magnet mounting for rapid installation
• Auto-cleans once per day and on unit start up
• Dry contacts for Building Automation System (BAS)
• Multiple units can be daisy chained into a single alarm contact
NanoCharge BOOST Product Specifications

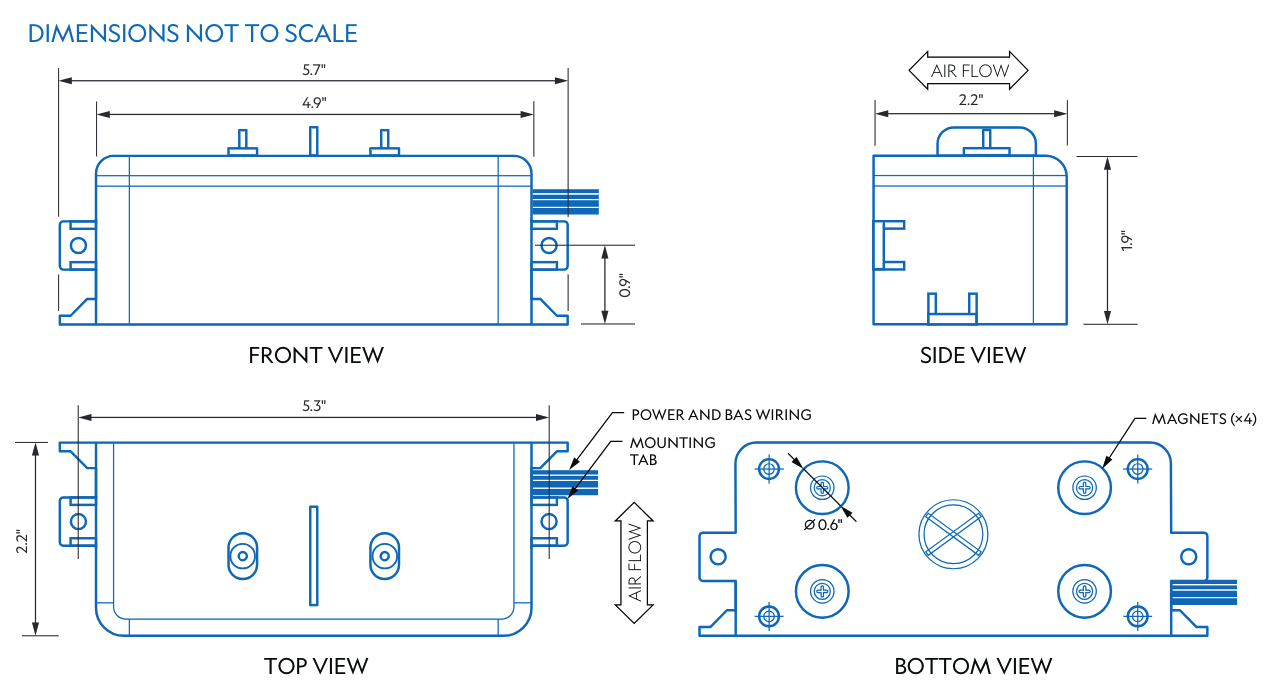

DIMENSIONS:
5.7" x 2.2" x 1.9"
WEIGHT:
0.57 lbs | 0.26 Kg
INPUT VOLTAGES:
24V - 240V AC
POWER CONSUMPTION:
Less than 8.5 Watts
AIRFLOW CAPACITY:
200 - 6,000 CFM
MODE OF OPERATION:
Brush Type
SELF-CLEANING:
Automated
TYPE:
Negative Ionization
